UGR19 TRACK LINEAR LIGHT
Choose your product version
35mm W
45mm W
65mm W

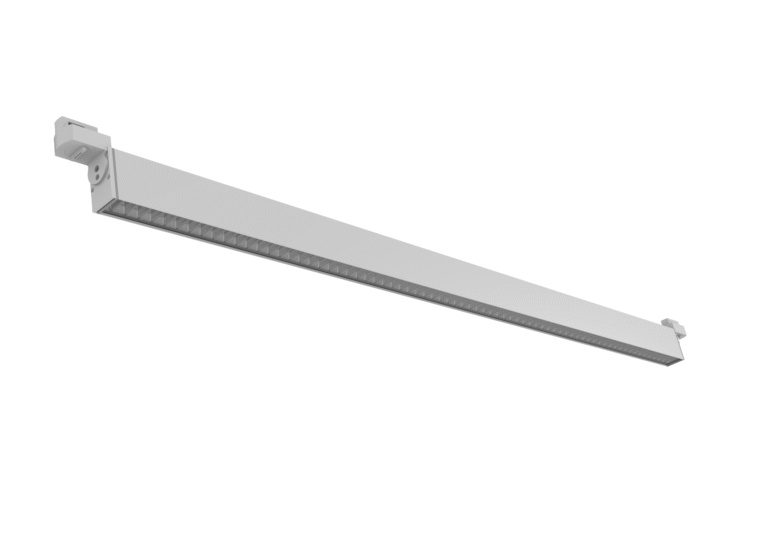

Track Linear Light UGR19
Modular Design allows free combination, easy for inventory and maintenance.
Product benefits
- Length: 600mm, 1200mm, 1500mm
- Width: 35mm
- Power: 30W, 36W, 45W, 50W, 60W
- High Efficiency upto 140lm/W
- CRI 90
- Beam Angle: 70*35°
- CCT: Single 2700K ~ 6000K
- 5 Years Warranty
- L80 > 50,000hrs
- Color: White RAL 9016, Black RAL 9005, Grey RAL 7040

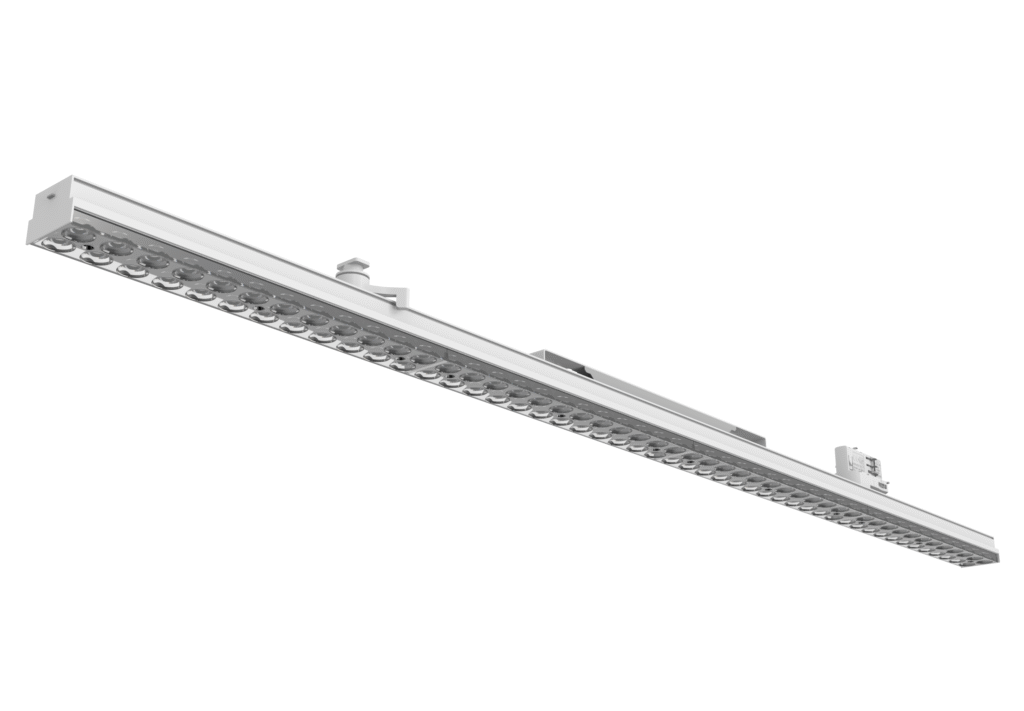

Track Linear Light UGR19
Modular Design allows free combination, easy for inventory and maintenance.
Product benefits
- Length: 600mm, 1200mm, 1500mm
- Width: 45mm
- Power: 30W, 36W, 45W, 50W, 60W
- High Efficiency upto 140lm/W
- CRI 90
- Beam Angle: 70*35°
- CCT: Single 2700K ~ 6000K
- 5 Years Warranty
- L80 > 50,000hrs
- Color: White RAL 9016, Black RAL 9005, Grey RAL 7040

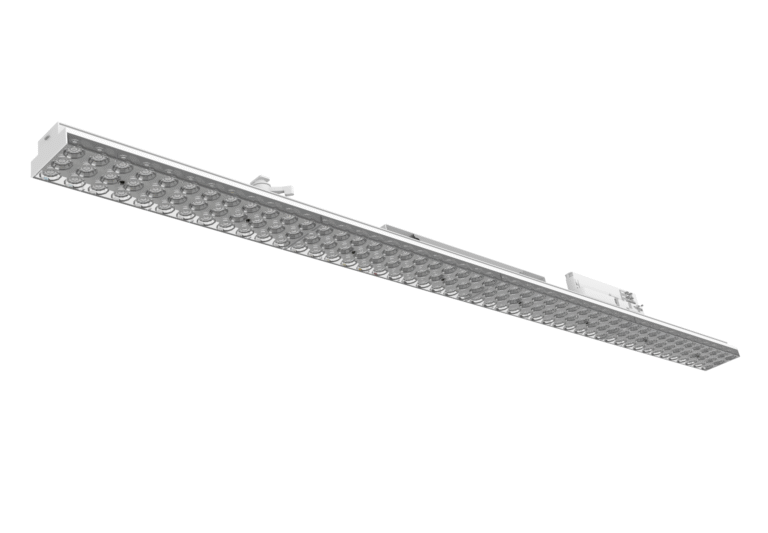

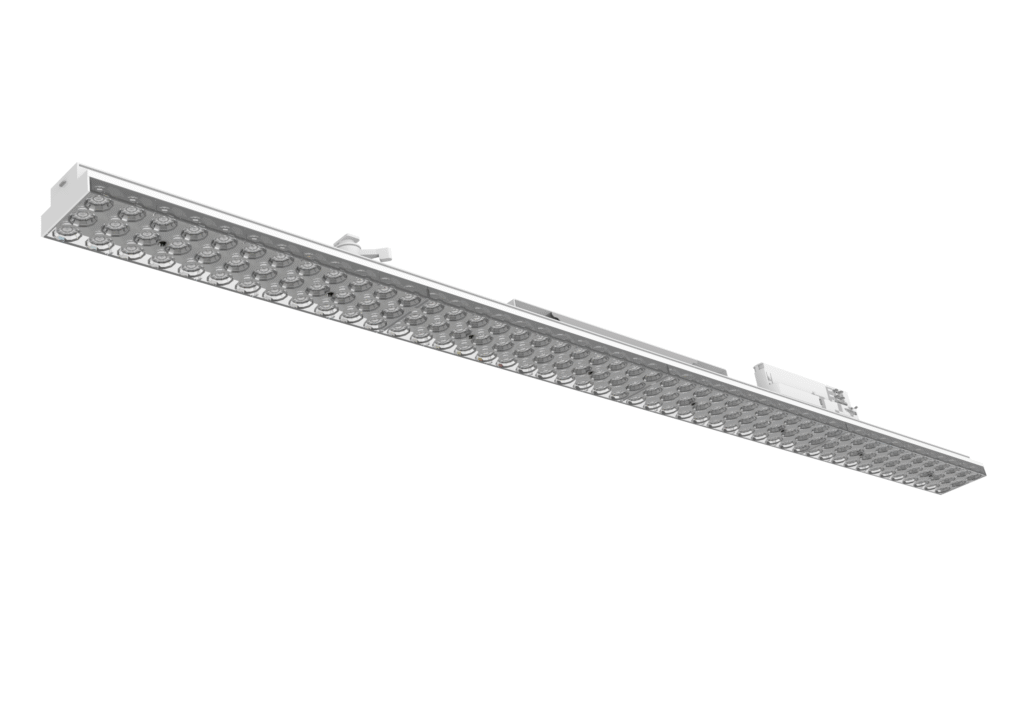

Track Linear Light UGR19
Modular Design allows free combination, easy for inventory and maintenance.
Product benefits
- Length: 600mm, 1200mm, 1500mm
- Width: 65mm
- Power: 30W, 36W, 45W, 50W, 60W
- High Efficiency upto 140lm/W
- CRI 90
- Beam Angle: 70*35°
- CCT: Single 2700K ~ 6000K
- 5 Years Warranty
- L80 > 50,000hrs
- Color: White RAL 9016, Black RAL 9005, Grey RAL 7040
MODULAR DESIGN
LED modules can be combined with various aluminum rings and bezels to create diverse appearances.
TECHNICAL DATA
VALUE
Luminaire colour
RAL9016 White，RAL9017 Black
Size
L600mm, 1200mm, 1500mm * W35mm, 45mm, 65mm
Input Power
30W @ L600mm
60W @ L1500mm
Input Voltage
220-240V
Luminous Efficacy
upto 140lm/W
LED Chip
Bridgelux COB
CCT
2700 / 3000 / 4000 / 5000 / 6000 / 6500K
CRI
>80Ra or >90Ra
Dimming
On-Off, Phase, 0/1-10V, DALI
Light Distribution Curve
70*35°
UGR
<19
Ambient Temperature Ta ( @life time 50,000 h)
-25 ~ 40°
Rated Life L80/B50 @25°C
50,000 hrs
Warranty
5 years
