RETAIL LED TRACK SPOTLIGHT
Choose your product version
58mm 15W
58mm 20W
68mm 25W
68mm 35W
78mm 35W
88mm 35W

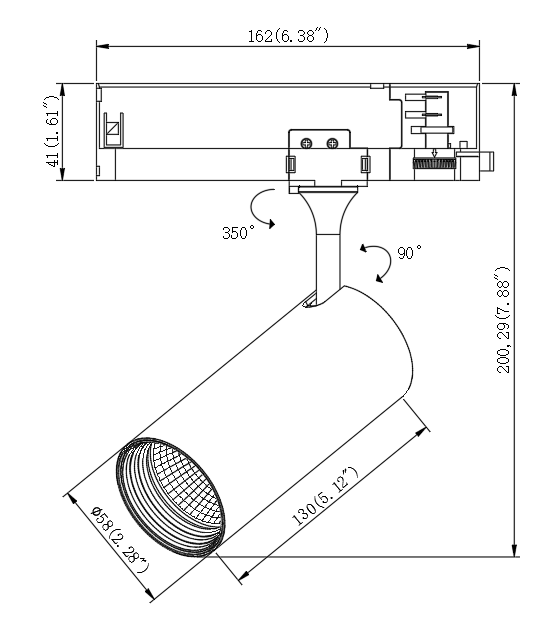

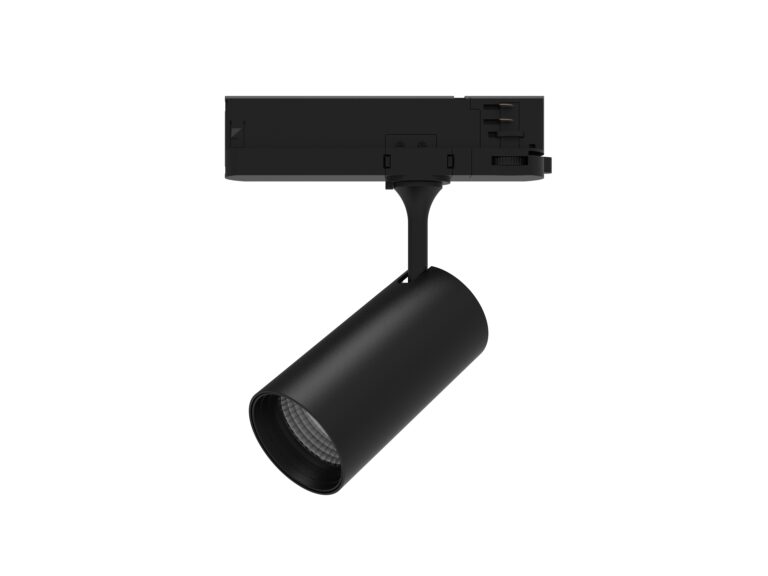

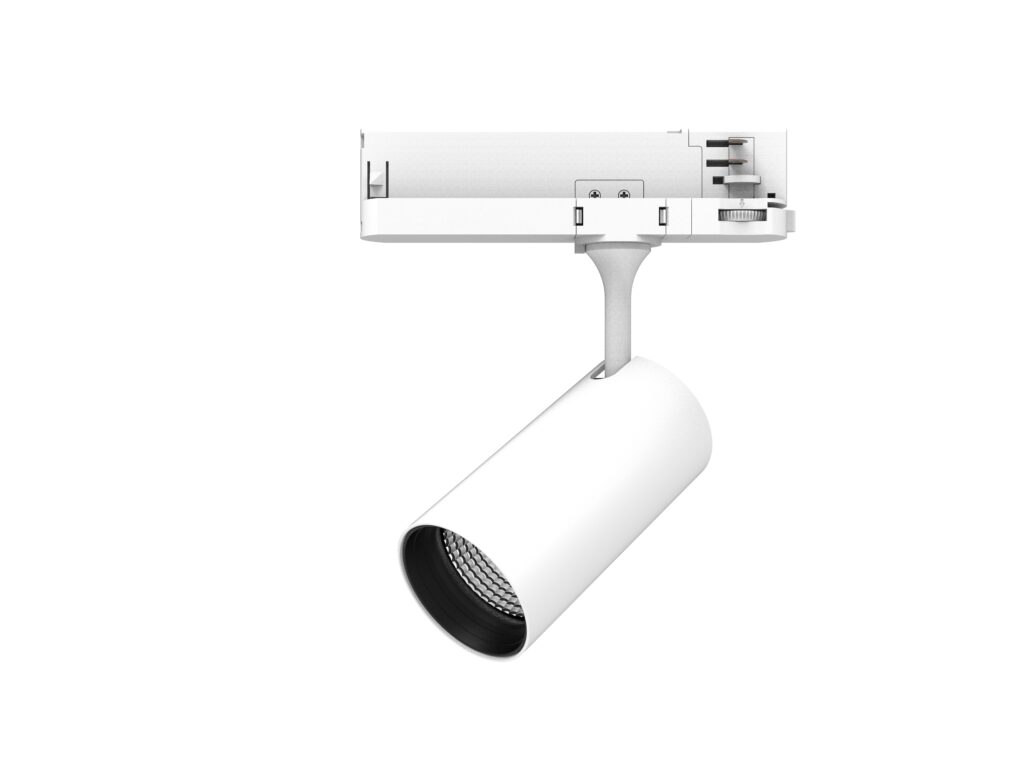

Anti-Glare 3 Phase LED Track Spotlight
Product benefits
- Cut Out: 58mm
- Power：15W
- DIP Swith Driver
- High Efficiency upto 140lm/W
- CRI 90
- Beam Angle: 15°/24°/40°/50°
- Optic: Lens or Reflector
- CCT: Single 2700K ~ 6000K
- 5 Years Warranty
- L80 > 50,000hrs
- Color: White RAL 9016, Black RAL 9005, Grey RAL 7040
Anti-Glare 3 Phase LED Track Spotlight
Product benefits
- Cut Out: 58mm
- Power 20W
- DIP Swith Driver
- High Efficiency upto 140lm/W
- CRI 90
- Beam Angle: 15°/24°/40°/50°
- Optic: Lens or Reflector
- CCT: Single 2700K ~ 6000K
- 5 Years Warranty
- L80 > 50,000 hrs
- Color: White RAL 9016, Black RAL 9005, Grey RAL 7040

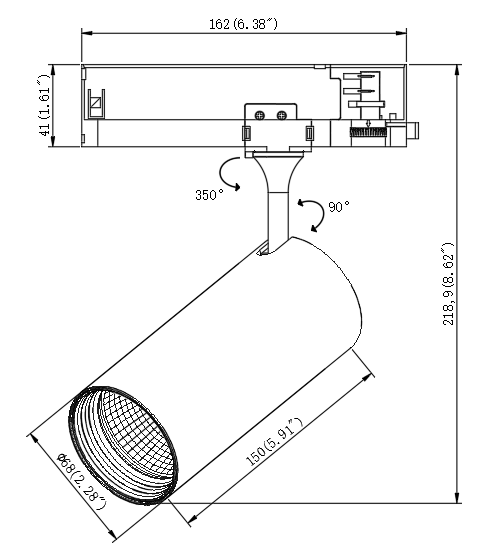

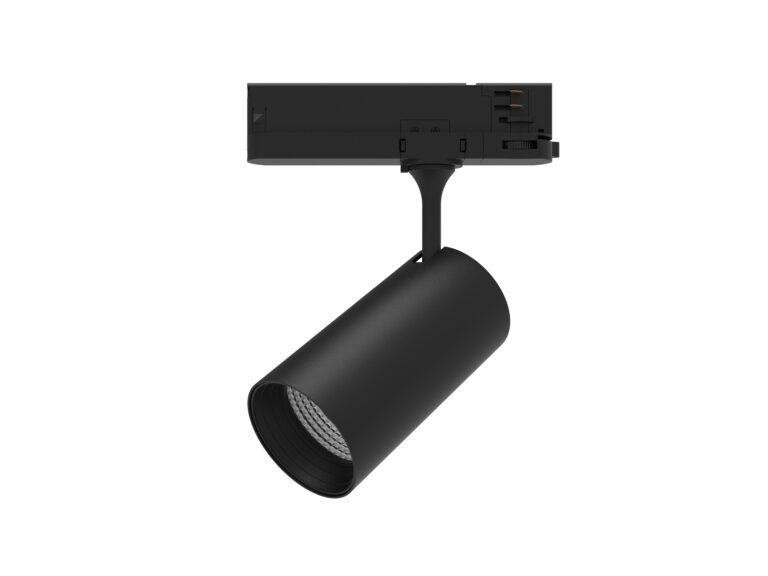

Anti-Glare 3 Phase LED Track Spotlight
Product benefits
- Cut Out: 68mm
- Power：25W
- DIP Swith Driver
- High Efficiency upto 140lm/W
- CRI 90
- Beam Angle: 15°/24°/40°/50°
- Optic: Lens or Reflector
- CCT: Single 2700K ~ 6000K
- 5 Years Warranty
- L80 > 50,000 hrs
- Color: White RAL 9016, Black RAL 9005, Grey RAL 7040
Anti-Glare 3 Phase LED Track Spotlight
Product benefits
- Cut Out: 68mm
- Power：35W
- DIP Swith Driver
- High Efficiency upto 140lm/W
- CRI 90
- Beam Angle: 15°/24°/40°/50°
- Optic: Lens or Reflector
- CCT: Single 2700K ~ 6000K
- 5 Years Warranty
- L80 > 50,000 hrs
- Color: White RAL 9016, Black RAL 9005, Grey RAL 7040

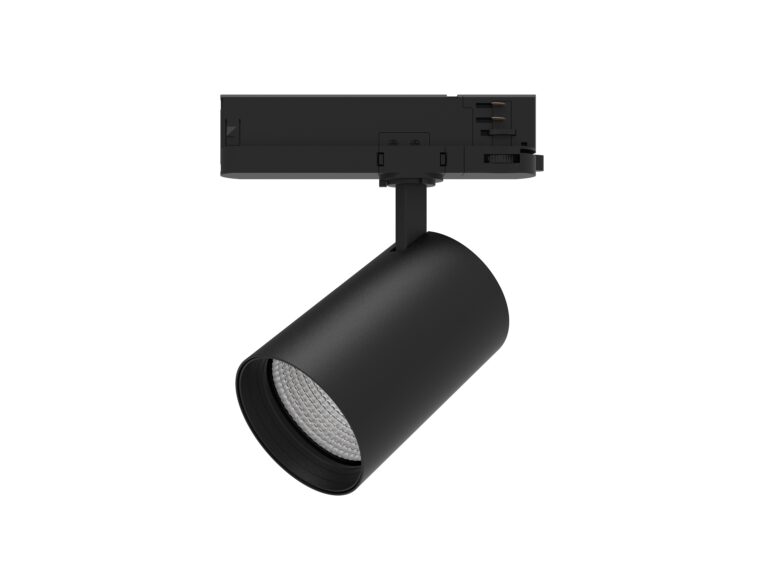

Anti-Glare 3 Phase LED Track Spotlight
Product benefits
- Cut Out: 78mm
- Power：35W
- DIP Swith Driver
- High Efficiency upto 140lm/W
- CRI 90
- Beam Angle: 15°/24°/40°/50°
- Optic: Lens or Reflector
- CCT: Single 2700K ~ 6000K
- 5 Years Warranty
- L80 > 50,000 hrs
- Color: White RAL 9016, Black RAL 9005, Grey RAL 7040

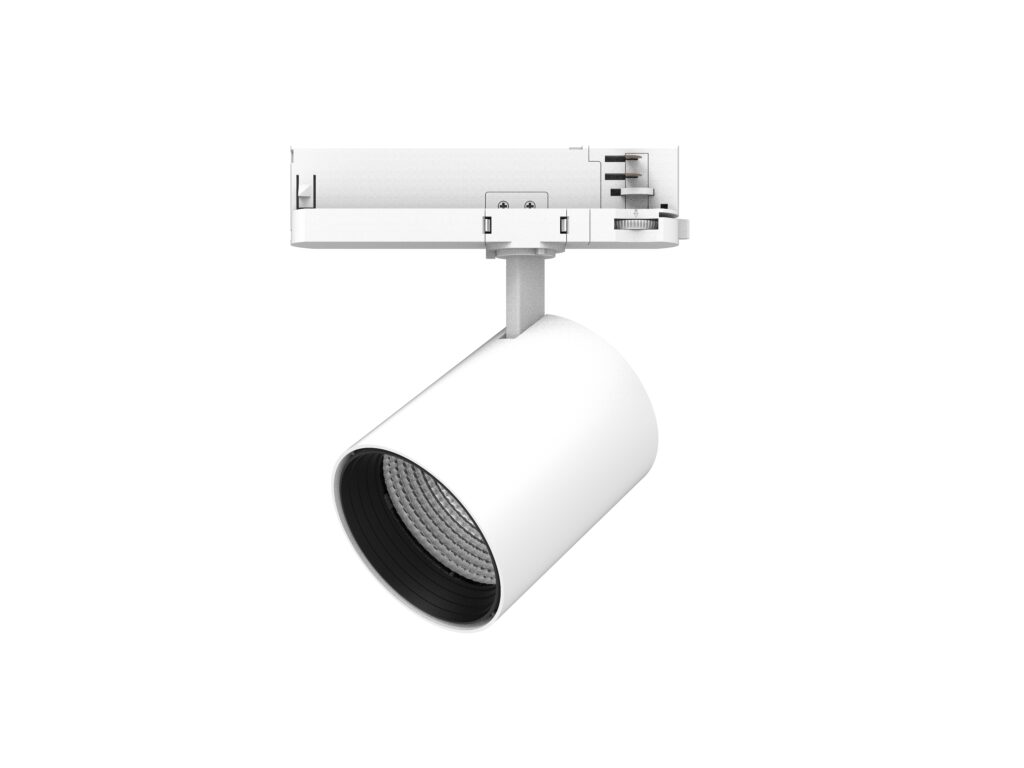

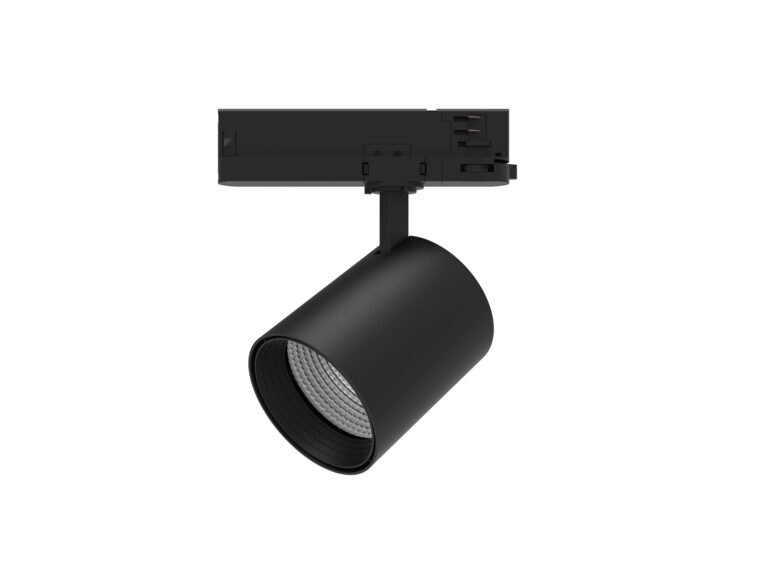

Anti-Glare 3 Phase LED Track Spotlight
Product benefits
- Cut Out: 88mm
- Power：35W
- DIP Swith Driver
- High Efficiency upto 140lm/W
- CRI 90
- Beam Angle: 15°/24°/40°/50°
- Optic: Lens or Reflector
- CCT: Single 2700K ~ 6000K
- 5 Years Warranty
- L80 > 50,000 hrs
- Color: White RAL 9016, Black RAL 9005, Grey RAL 7040
MODULAR DESIGN
LED modules can be combined with various aluminum rings and bezels to create diverse appearances.
TECHNICAL DATA
VALUE
Luminaire colour
RAL9016 White，RAL9017 Black
Diameter
58mm, 68mm, 78mm, 88mm
Input Power
15W & 20W @ Φ58mm
25W & 35W @ Φ68mm
35W @ Φ78mm, 88mm
Input Voltage
220-240V
Luminous Efficacy
upto 140lm/W
LED Chip
Bridgelux COB
CCT
2700 / 3000 / 4000 / 5000 / 6000 / 6500K
CRI
>80Ra or >90Ra
Special Spectrum
for Meat, Bread, Vegetable, Fish optional
Dimming
On-Off, Phase, 0/1-10V, DALI
Light Distribution Curve
15°，24°，40°，50°
Optic
PMMA Lens or Reflector
Ambient Temperature Ta ( @life time 50,000 h)
-25 ~ 40°
Rated Life L80/B50 @25°C
50,000 hrs
Warranty
5 years
