MODULAR LED RECESSED SPOTLIGHT
Choose your product version
75mm 20W
75mm 30W
95mm 20W
95mm 35W

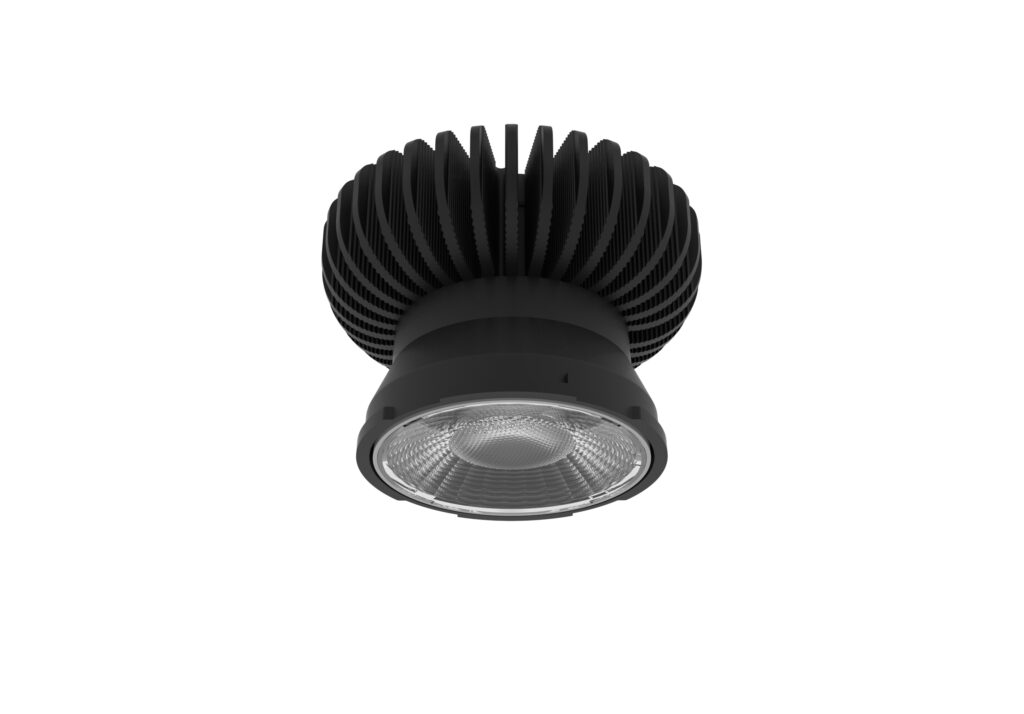

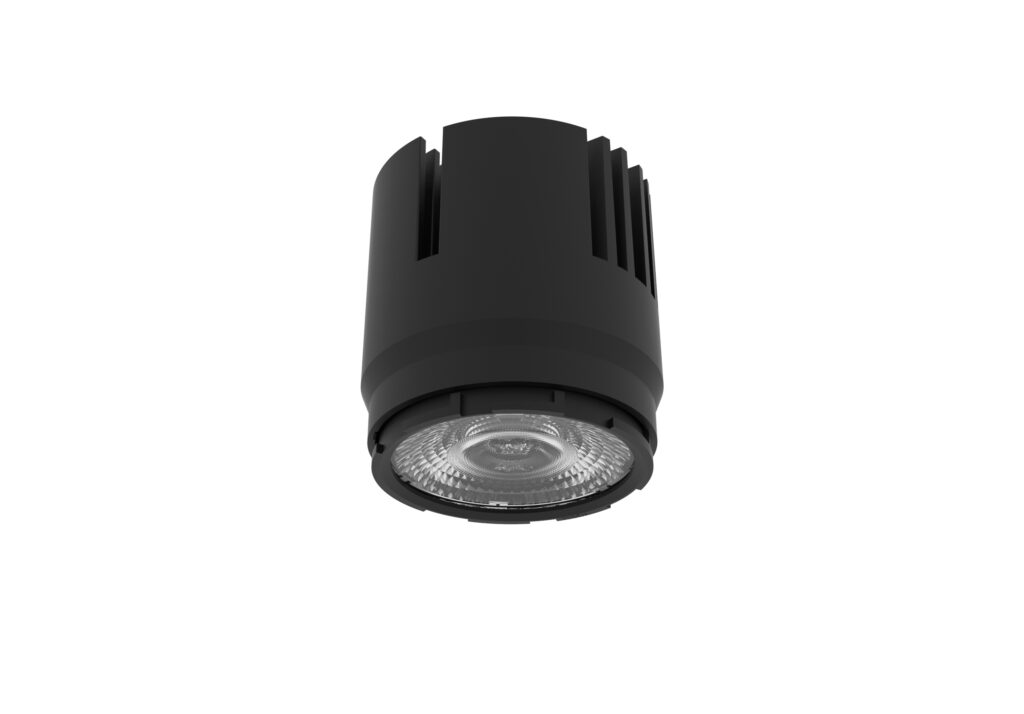

COB LED Spot Module for Multi Frames -- Modular Design
Modular Design allows free combination, easy for inventory and maintenance.
Product benefits
- Cut Out: 75mm
- Power：DIP Switch 12W 15W 20W
- DIP Swith Driver
- High Efficiency upto 105lm/W
- CRI 90
- Beam Angle: 15°/25°/36°/45°
- CCT: Single 2700K ~ 6000K
- 5 Years Warranty
- Color: White RAL 9016, Black RAL 9005, Grey RAL 7040

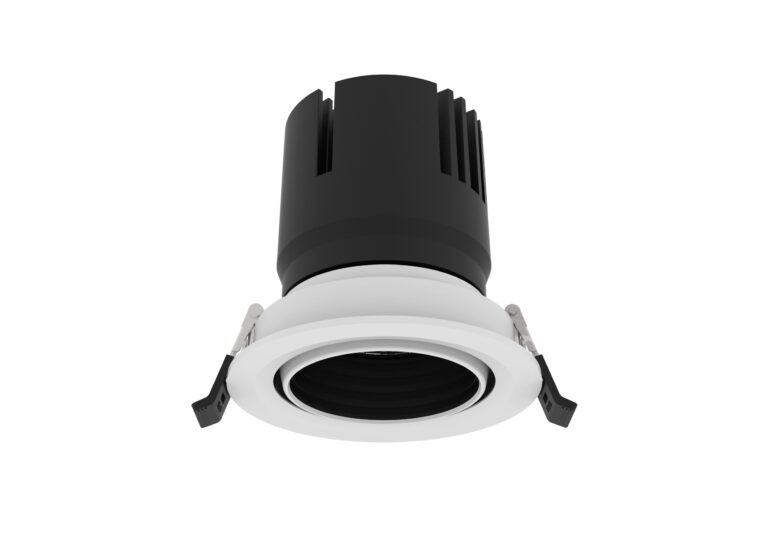

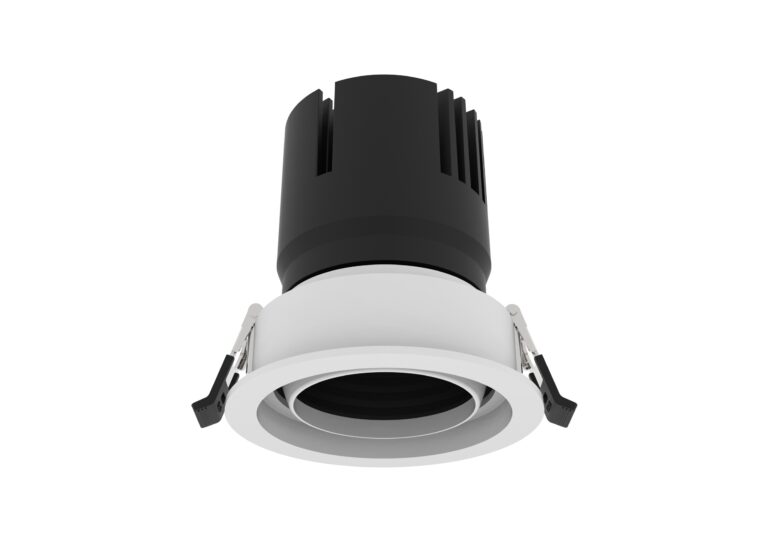

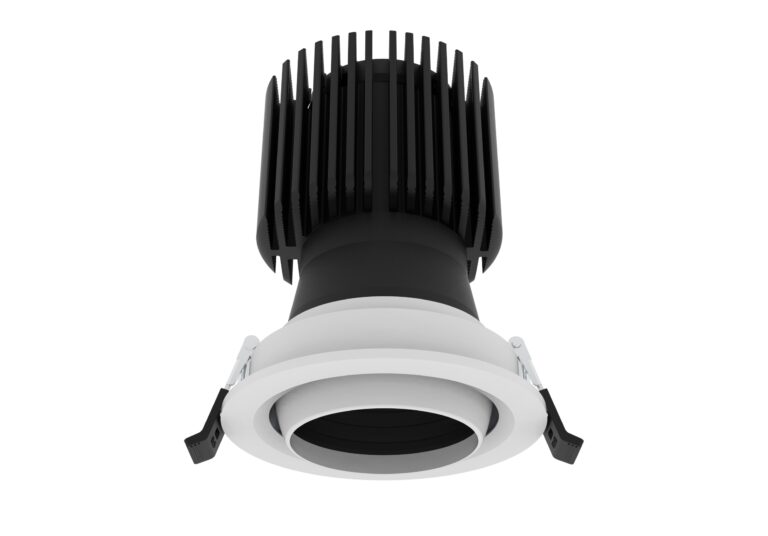

COB LED Spot Module for Multi Frames -- Modular Design
Modular Design allows free combination, easy for inventory and maintenance.
Product benefits
- Cut Out: 75mm
- Power：DIP Switch 20W 25W 30W
- DIP Swith Driver
- High Efficiency upto 105lm/W
- CRI 90
- Beam Angle: 15°/25°/36°/45°
- CCT: Single 2700K ~ 6000K
- 5 Years Warranty
- Color: White RAL 9016, Black RAL 9005, Grey RAL 7040

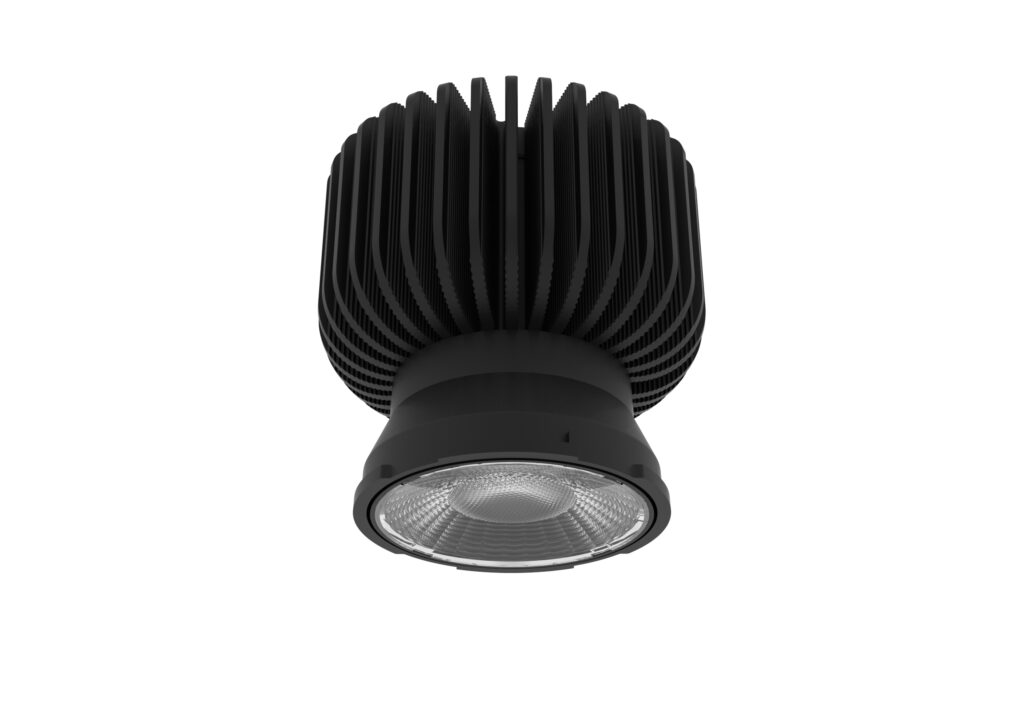

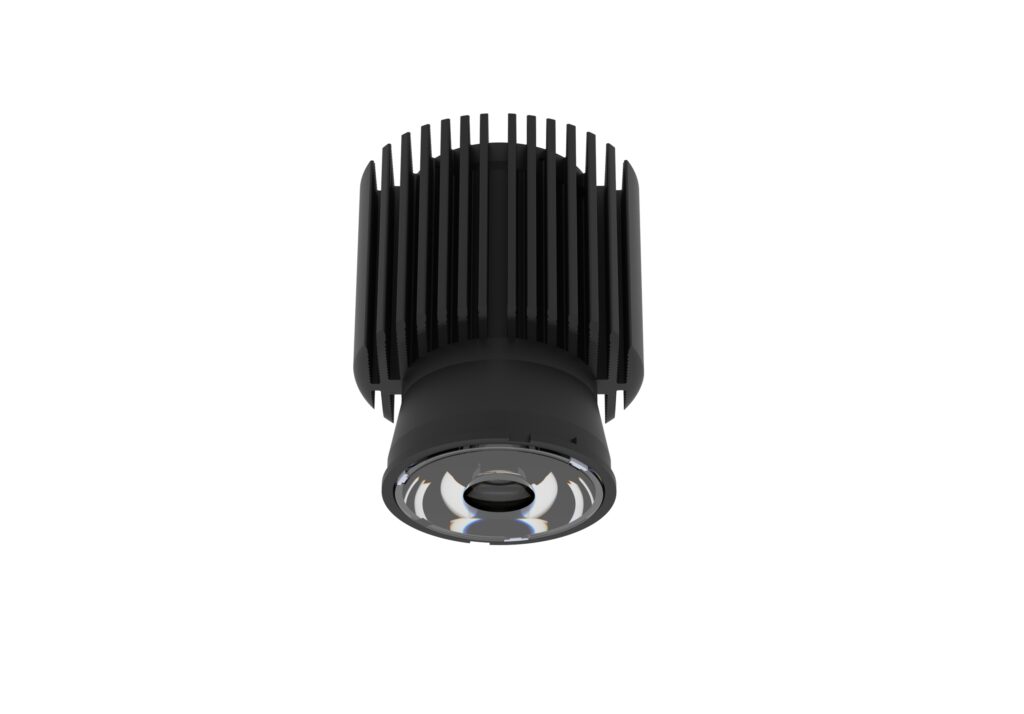

COB LED Spot Module for Multi Frames -- Modular Design
Modular Design allows free combination, easy for inventory and maintenance.
Product benefits
- Cut Out: 95mm
- Power：DIP Switch 12W 15W 20W
- DIP Swith Driver
- High Efficiency upto 105lm/W
- CRI 90
- Beam Angle: 15°/25°/36°/45°
- CCT: Single 2700K ~ 6000K
- 5 Years Warranty
- Color: White RAL 9016, Black RAL 9005, Grey RAL 7040

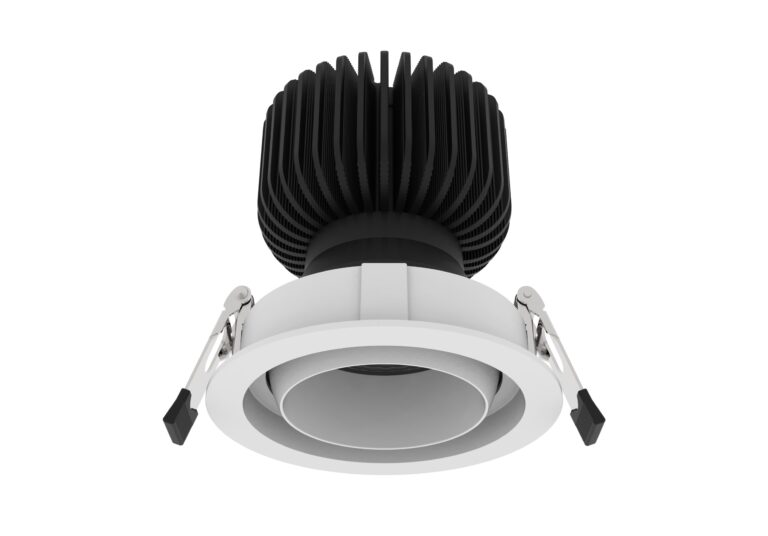

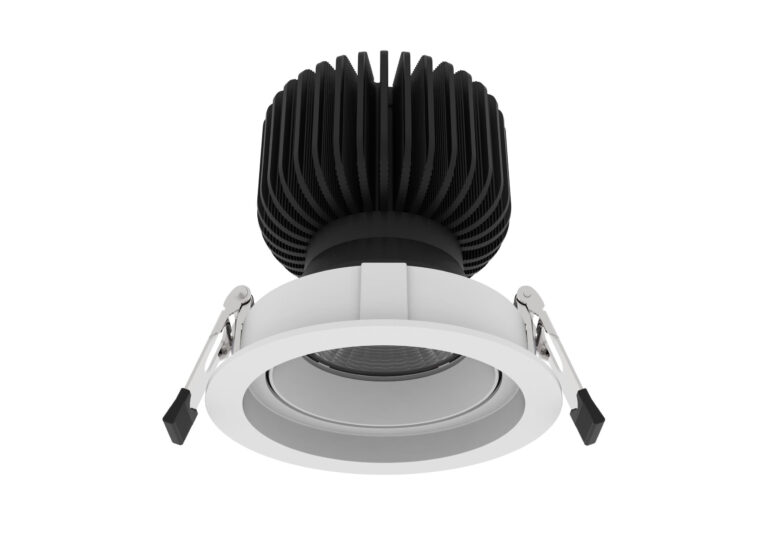

COB LED Spot Module for Multi Frames -- Modular Design
Modular Design allows free combination, easy for inventory and maintenance.
Product benefits
- Cut Out: 95mm
- Power：DIP Switch 25W 30W 35W
- DIP Swith Driver
- High Efficiency upto 105lm/W
- CRI 90
- Beam Angle: 15°/25°/36°/45°
- CCT: Single 2700K ~ 6000K
- 5 Years Warranty
- Color: White RAL 9016, Black RAL 9005, Grey RAL 7040
MODULAR DESIGN
LED modules can be combined with various aluminum rings and bezels to create diverse appearances.
TECHNICAL DATA
VALUE
Luminaire colour
RAL9016 White，RAL9017 Black
Cut Out
75mm, 95mm, 105mm
Input Power
20W or 30W @ Φ75mm
20W, 35W or 40W @ Φ95mm Φ105mm
Input Voltage
220-240V
Luminous Efficacy
upto 110lm/W
LED Chip
Bridgelux COB
CCT
2700 / 3000 / 4000 / 5000 / 6000 / 6500K
CRI
>80Ra or >90Ra
Dimming
On-Off, Phase, 0/1-10V, DALI
Light Distribution Curve
15°，25°，36°，45°
Ambient Temperature Ta ( @life time 50,000 h)
-25 ~ 40°
Rated Life L80/B50 @25°C
50,000 hrs
Warranty
5 years
