LED RECESSED SCOOP LIGHT
Choose your product version
75mm 20W
95mm 25W
95mm 30W
105mm 35W

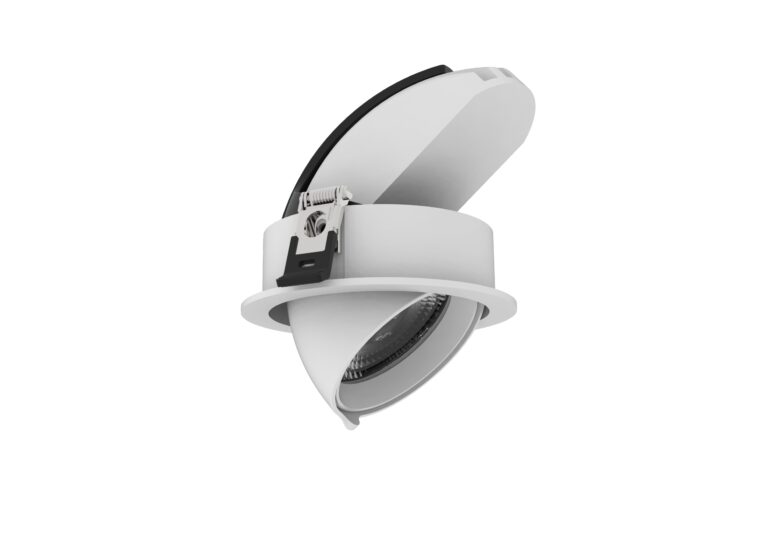

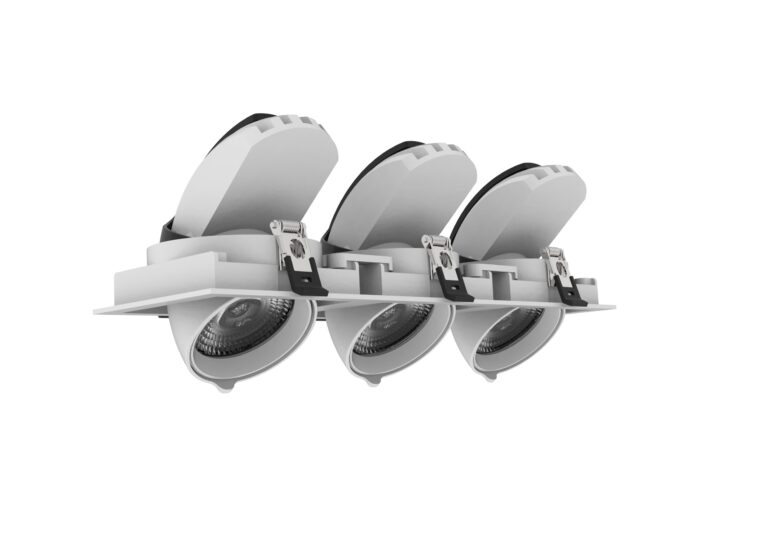

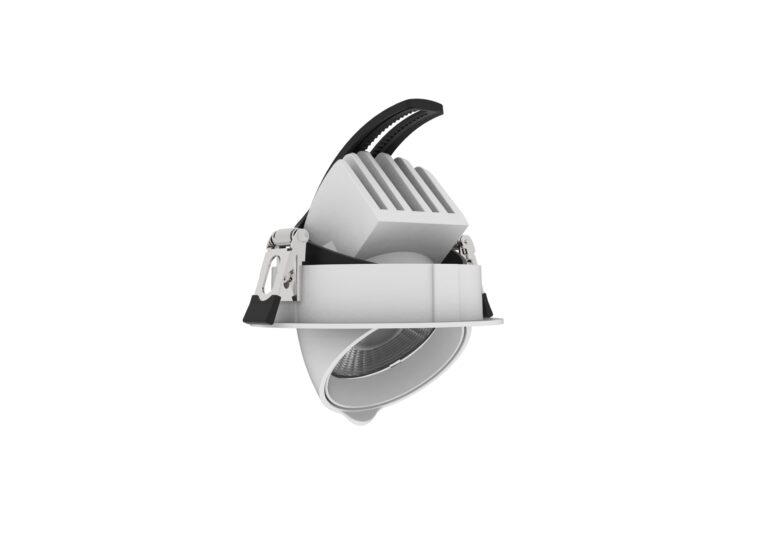

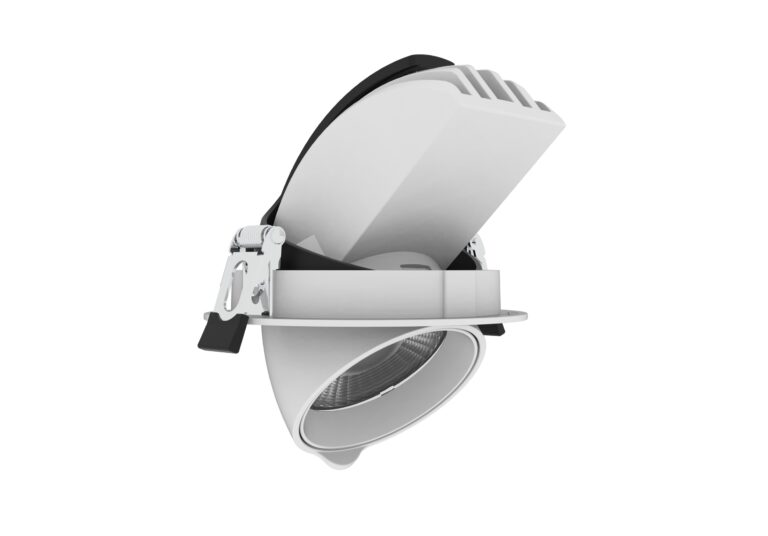

Adjustable LED Recessed Scoop Light -- Modular Design
Modular Design allows free combination, easy for inventory and maintenance.
Product benefits

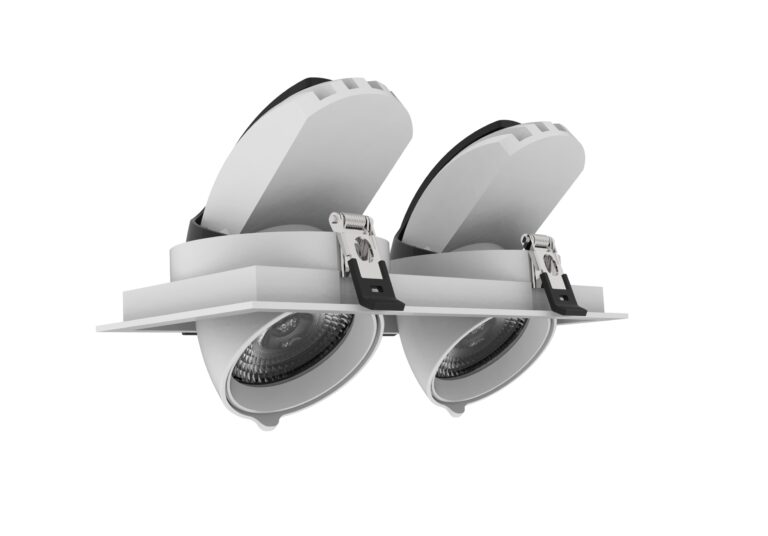

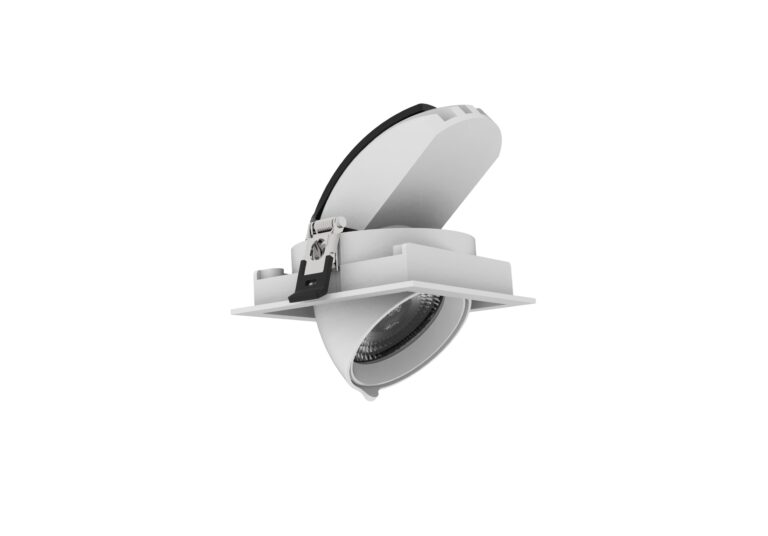

- Cut Out: 75mm
- Power：DIP Switch 12W 15W 20W
- DIP Swith Driver
- High Efficiency upto 120lm/W
- CRI 90
- Beam Angle: 15°/25°/36°/45°
- CCT: Single 2700K ~ 6000K
- 5 Years Warranty
- Color: White RAL 9016, Black RAL 9005, Grey RAL 7040

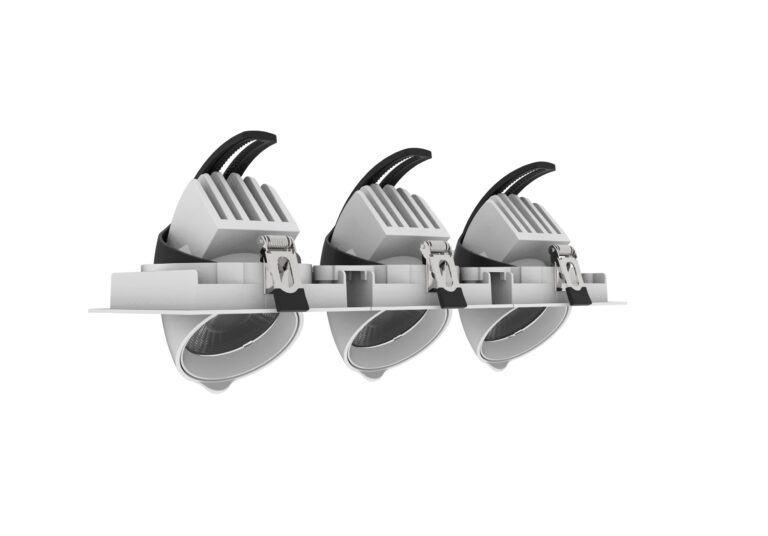

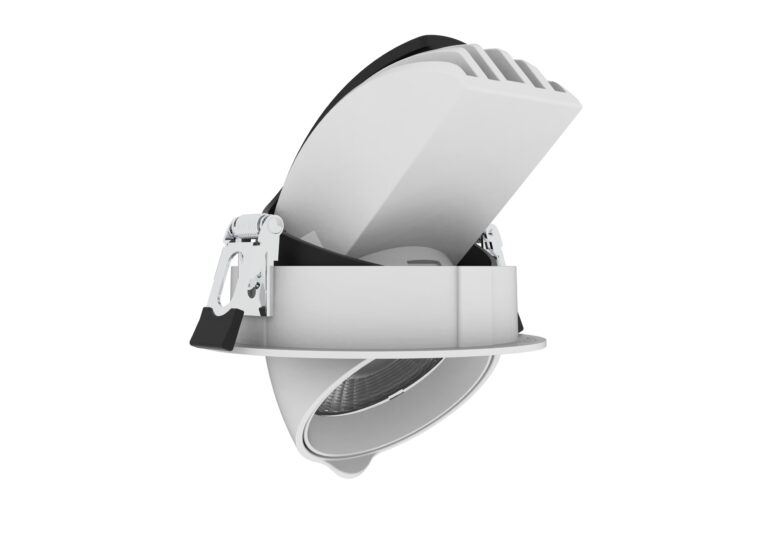

Adjustable LED Recessed Scoop Light -- Modular Design
Modular Design allows free combination, easy for inventory and maintenance.
Product benefits

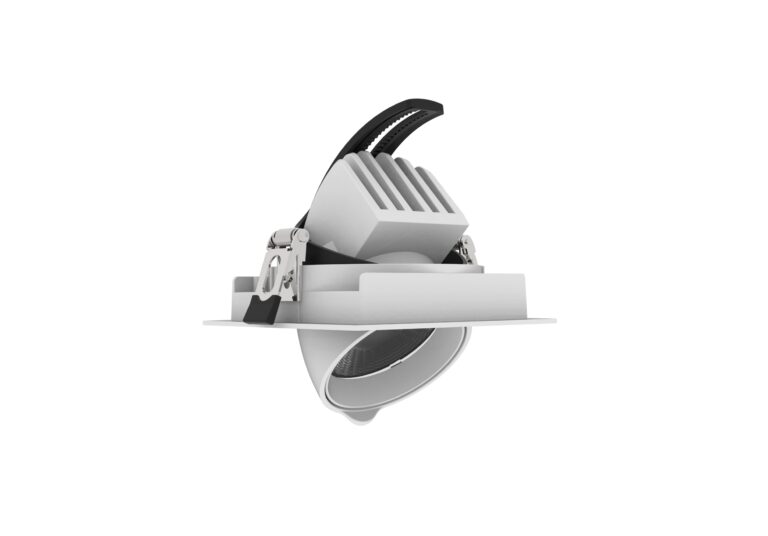

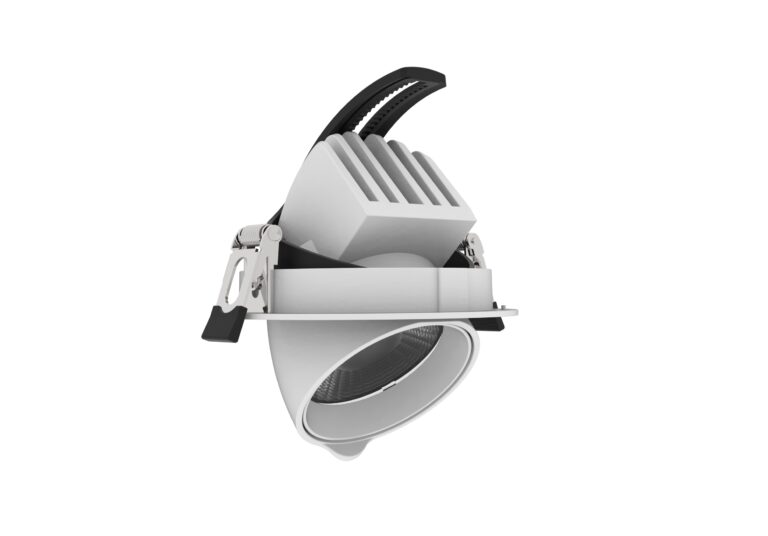

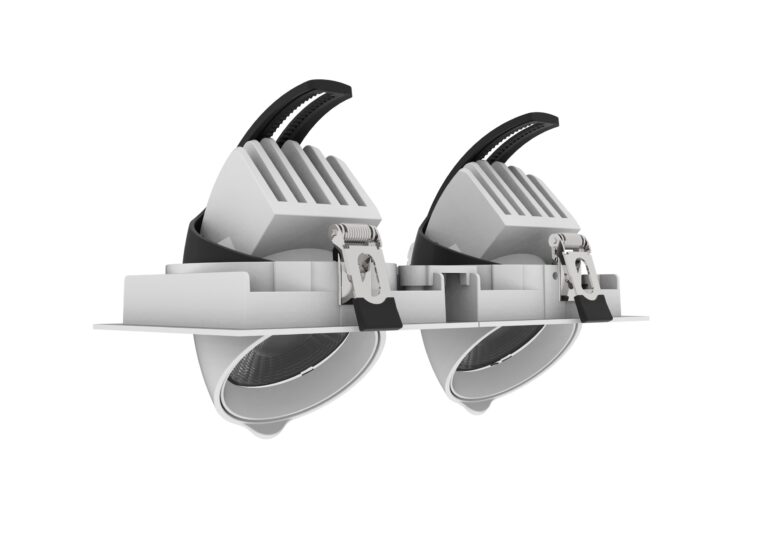

- Cut Out: 95mm
- Power：DIP Switch 15W 20W 25W
- DIP Swith Driver
- High Efficiency upto 120lm/W
- CRI 90
- Beam Angle: 15°/25°/36°/45°
- CCT: Single 2700K ~ 6000K
- 5 Years Warranty
- Color: White RAL 9016, Black RAL 9005, Grey RAL 7040

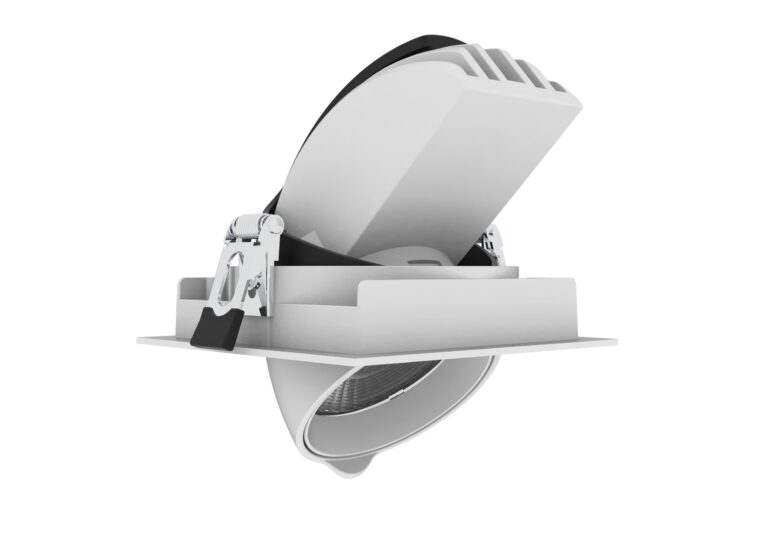

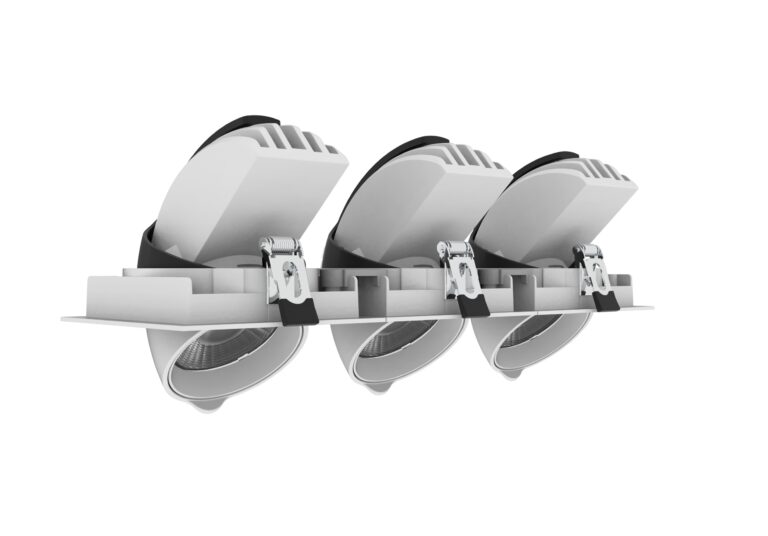

Adjustable LED Recessed Scoop Light -- Modular Design
Modular Design allows free combination, easy for inventory and maintenance.
Product benefits
- Cut Out: 95mm
- Power：DIP Switch 20W 25W 30W
- DIP Swith Driver
- High Efficiency upto 120lm/W
- CRI 90
- Beam Angle: 15°/25°/36°/45°
- CCT: Single 2700K ~ 6000K
- 5 Years Warranty
- Color: White RAL 9016, Black RAL 9005, Grey RAL 7040

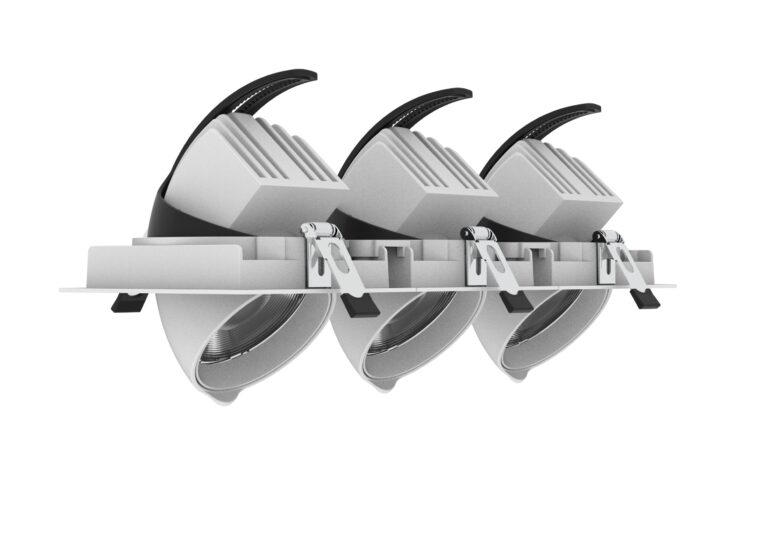

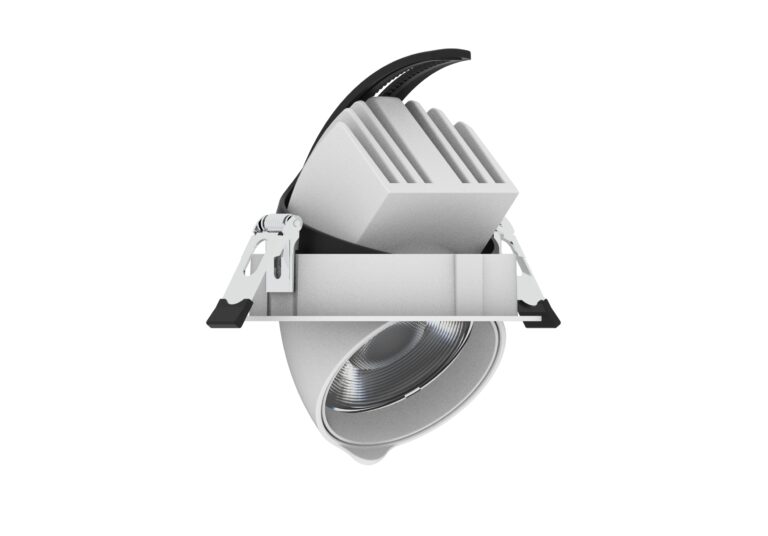

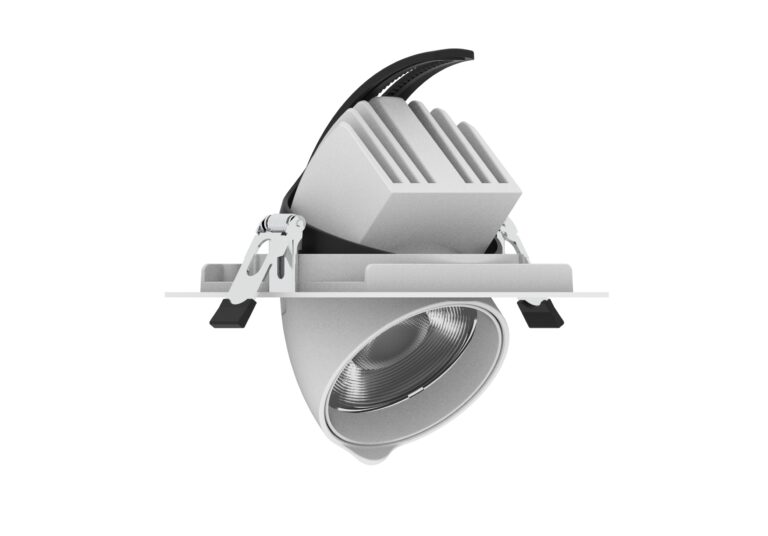

Adjustable LED Recessed Scoop Light -- Modular Design
Modular Design allows free combination, easy for inventory and maintenance.
Product benefits

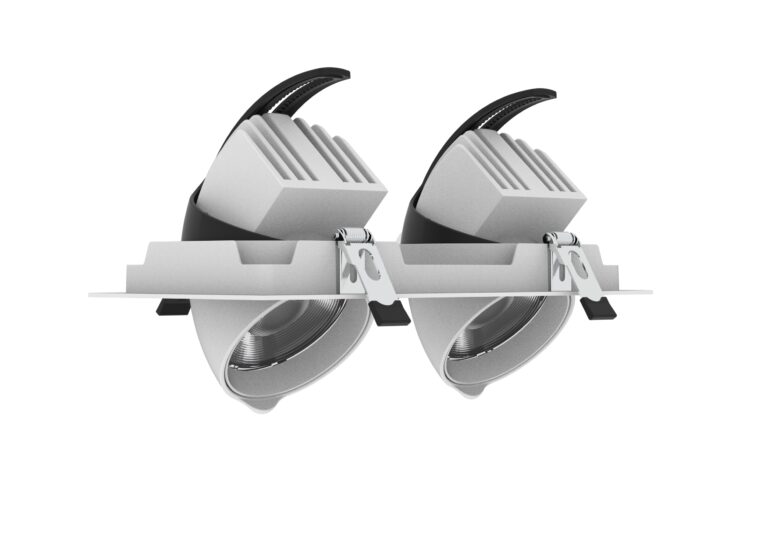

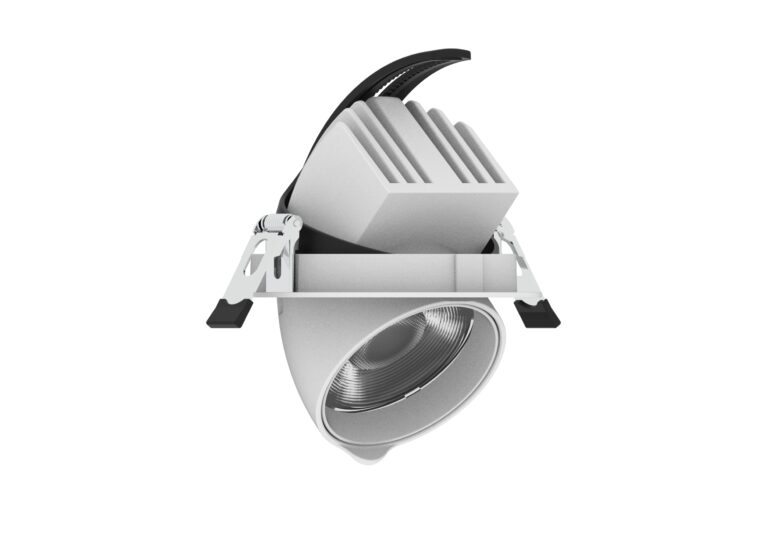

- Cut Out: 105mm
- Power：DIP Switch 25W 30W 35W
- DIP Swith Driver
- High Efficiency upto 120lm/W
- CRI 90
- Beam Angle: 15°/25°/36°/45°
- CCT: Single 2700K ~ 6000K
- 5 Years Warranty
- Color: White RAL 9016, Black RAL 9005, Grey RAL 7040

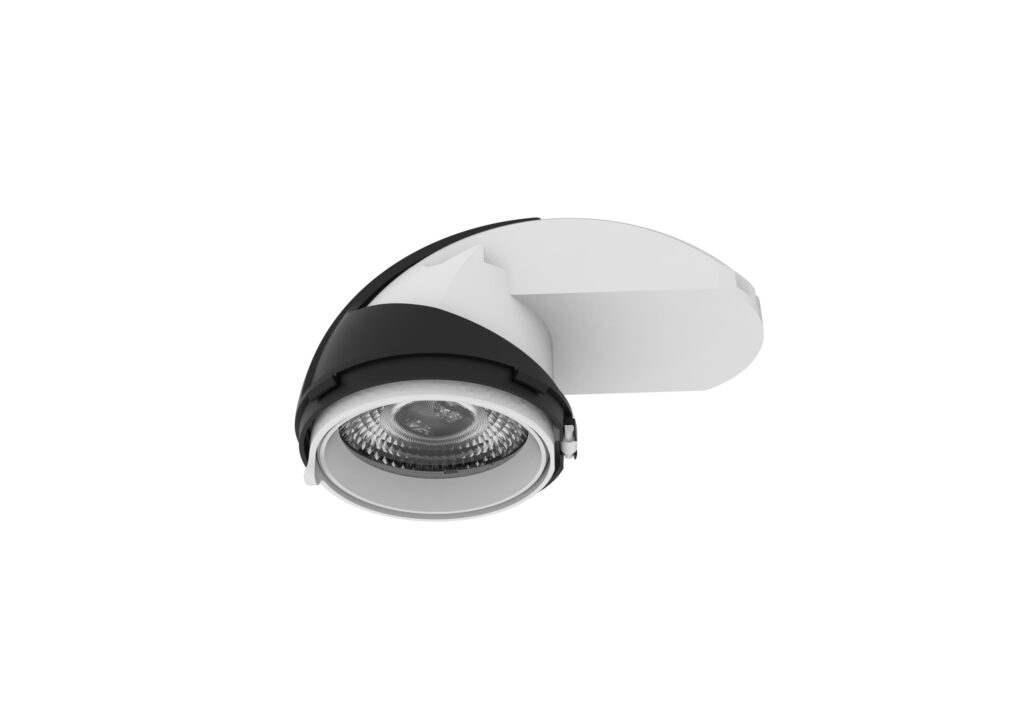

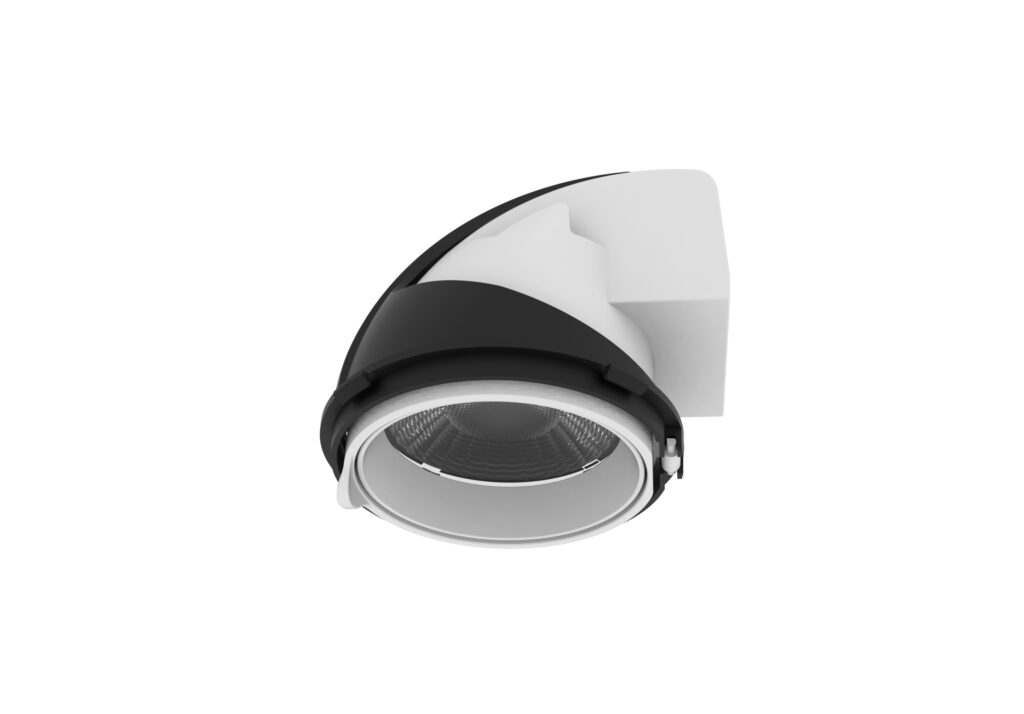

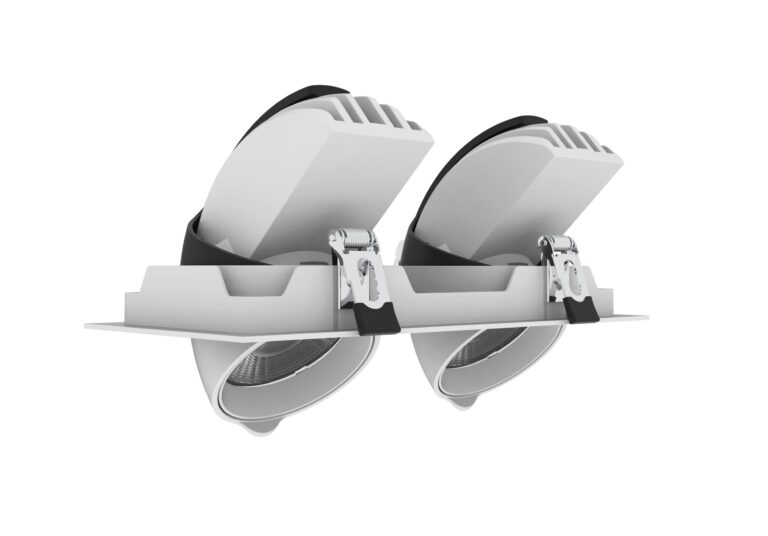

MODULAR DESIGN
LED modules can be combined with various aluminum rings and bezels to create diverse appearances.
TECHNICAL DATA
VALUE
Luminaire colour
RAL9016 White，RAL9017 Black
Cut Out
75mm, 95mm, 105mm
Input Power
20W @ Φ75mm
25W, 30W or 35W @ Φ95mm Φ105mm
Input Voltage
220-240V
Luminous Efficacy
upto 120lm/W
LED Chip
Bridgelux COB
CCT
2700 / 3000 / 4000 / 5000 / 6000 / 6500K
CRI
>80Ra or >90Ra
Dimming
On-Off, Phase, 0/1-10V, DALI
Light Distribution Curve
15°，25°，36°，45°
Ambient Temperature Ta ( @life time 50,000 h)
-25 ~ 40°
Rated Life L80/B50 @25°C
50,000 hrs
Warranty
5 years
