ADJUSTABLE LED RECESSED DOWNLIGHT
Choose your product version
135mm 40W
155mm 40W
170mm 50W

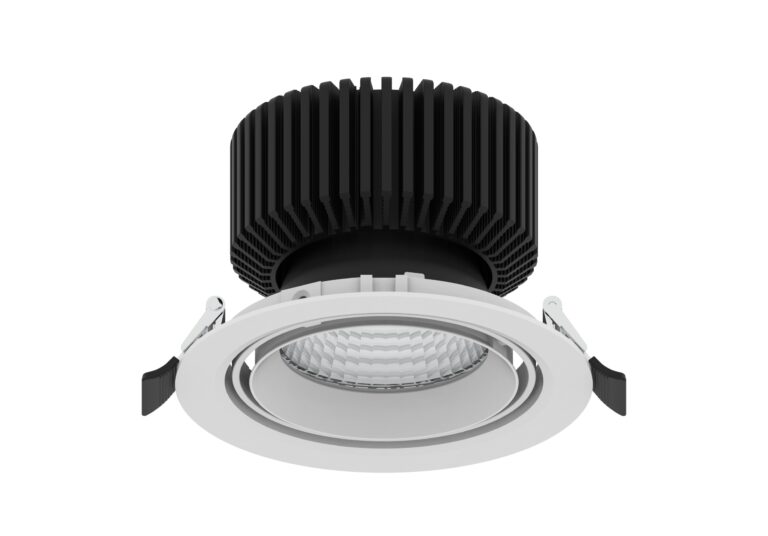

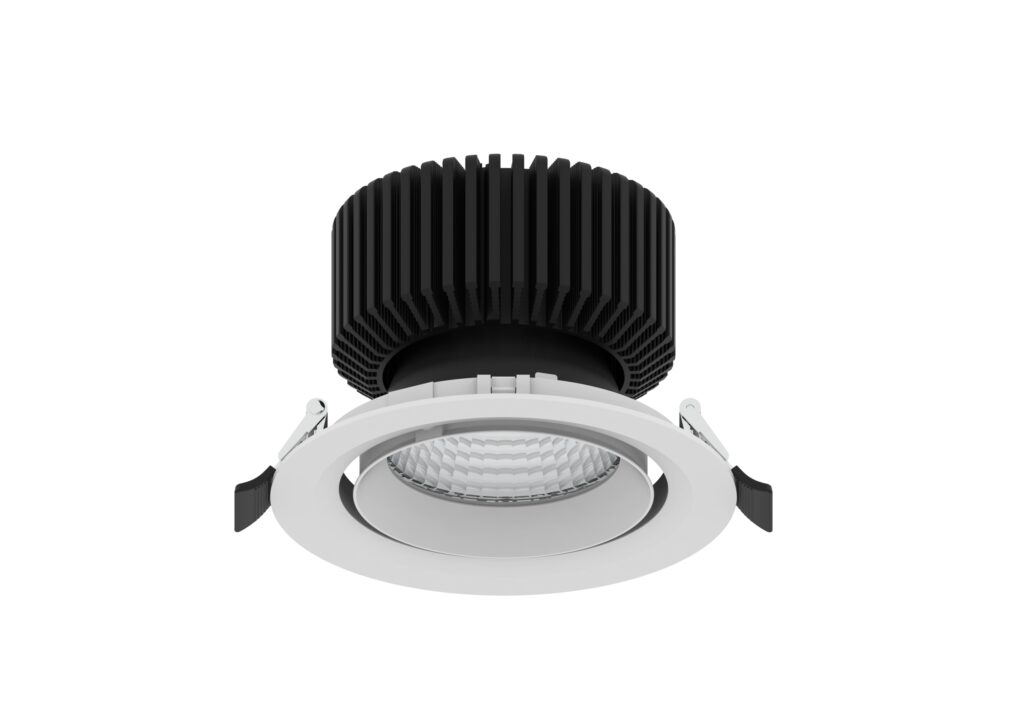

Adjustable LED Recessed Downlight
Modular Design allows free combination, easy for inventory and maintenance.
Product benefits
- Cut Out: 135mm
- Power：DIP Switch 30W 35W 40W
- DIP Swith Driver
- High Efficiency upto 130lm/W
- CRI 90
- Beam Angle: 15°/25°/36°/45°/60°
- CCT: Single 2700K ~ 6000K
- 5 Years Warranty
- L80 > 50,000hrs
- Color: White RAL 9016, Black RAL 9005, Grey RAL 7040

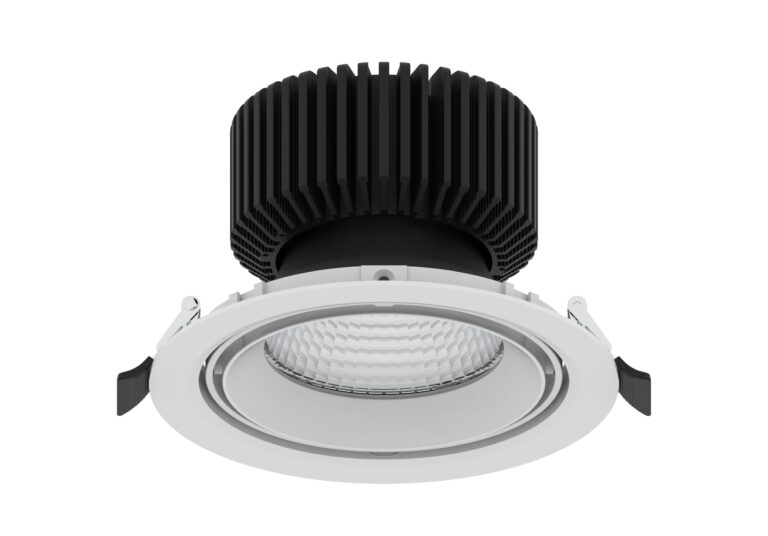

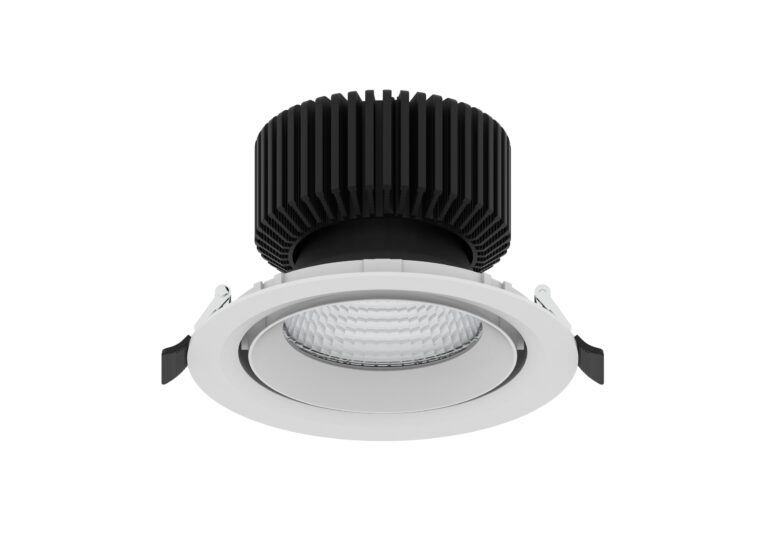

Adjustable LED Recessed Downlight
Modular Design allows free combination, easy for inventory and maintenance.
Product benefits
- Cut Out: 155mm
- Power：DIP Switch 30W 35W 40W
- DIP Swith Driver
- High Efficiency upto 130lm/W
- CRI 90
- Beam Angle: 15°/25°/36°/45°/60°
- CCT: Single 2700K ~ 6000K
- 5 Years Warranty
- L80 > 50,000 hrs
- Color: White RAL 9016, Black RAL 9005, Grey RAL 7040

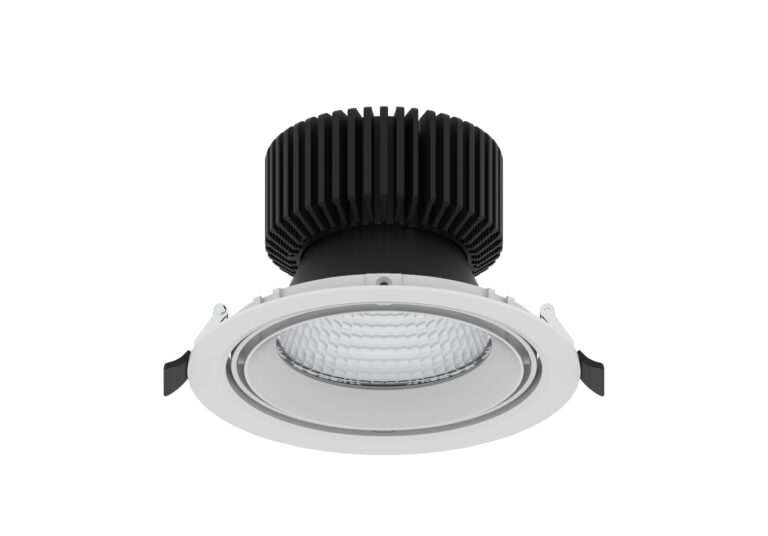

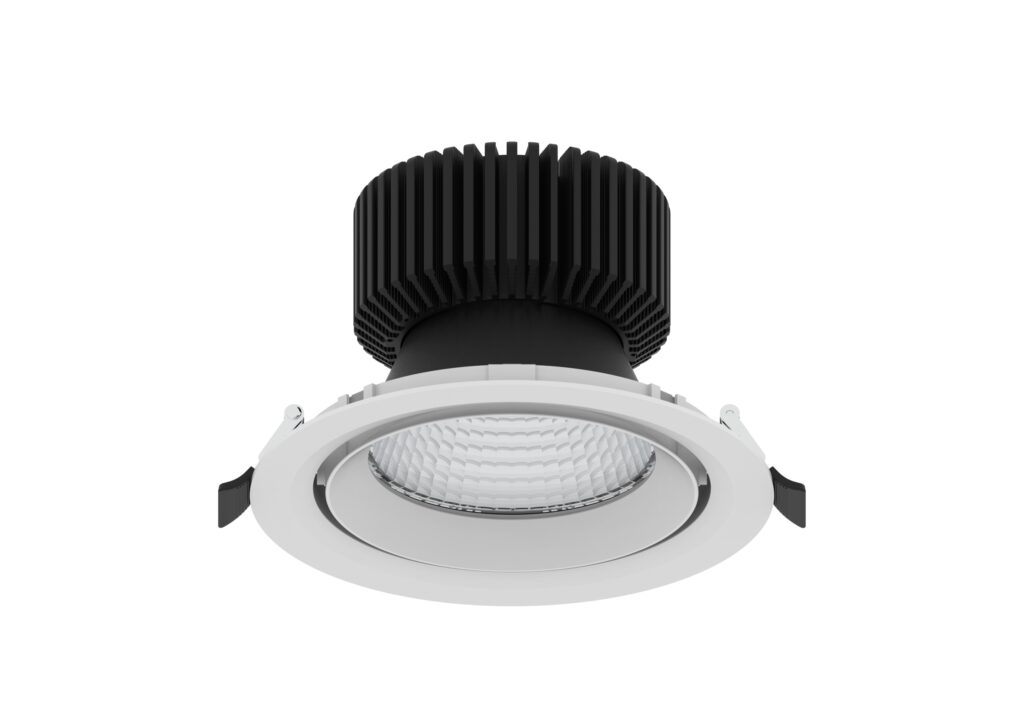

Adjustable LED Recessed Downlight
Modular Design allows free combination, easy for inventory and maintenance.
Product benefits
- Cut Out: 170mm
- Power：DIP Switch 35W 40W 45W 50W
- DIP Swith Driver
- High Efficiency upto 130lm/W
- CRI 90
- Beam Angle: 15°/25°/36°/45°/60°
- CCT: Single 2700K ~ 6000K
- 5 Years Warranty
- L80 > 50,000 hrs
- Color: White RAL 9016, Black RAL 9005, Grey RAL 7040
MODULAR DESIGN
LED modules can be combined with various aluminum rings and bezels to create diverse appearances.
TECHNICAL DATA
VALUE
Luminaire colour
RAL9016 White，RAL9017 Black
Cut Out
135mm, 155mm, 170mm
Input Power
40W @ Φ135mm & 155mm
50W @ Φ170mm
Input Voltage
220-240V
Luminous Efficacy
upto 130lm/W
LED Chip
Bridgelux COB
CCT
2700 / 3000 / 4000 / 5000 / 6000 / 6500K
CRI
>80Ra or >90Ra
Dimming
On-Off, Phase, 0/1-10V, DALI
Light Distribution Curve
15°，25°，36°，45°，60°
Ambient Temperature Ta ( @life time 50,000 h)
-25 ~ 40°
Rated Life L80/B50 @25°C
50,000 hrs
Warranty
5 years
